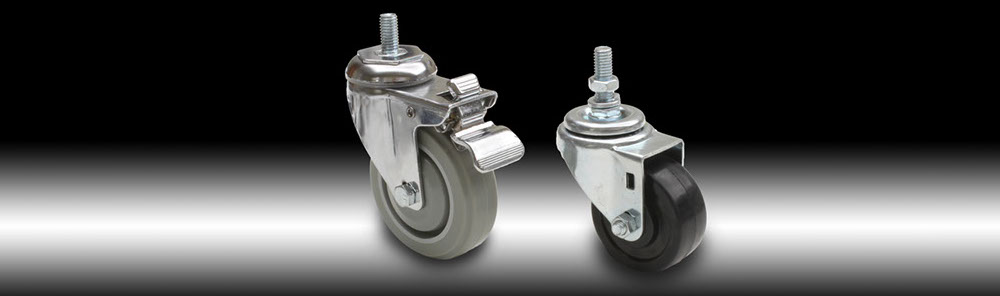

Institutional industrial casters from Carpin are designed for more challenging applications with a maximum load weight rating that ranges from 135 to 200 lbs. per caster depending on the product.
These industrial grade casters are available in standard wheel diameters ranging from 75mm to 125mm, with wheels constructed from nylon (PA6), soft rubber, hard rubber, or polypropylene (PP).
Carpin institutional industrial casters can be ordered as rigid (non-swivel) or swivel, with or without a side brake. Various bearings are available, including single bearing, double bearing, PA bushing, or steel bearing.
If the required load weight is over 400 lbs. per caster, then rocker bearings or ball bearings are generally recommended. Floor type and floor condition are important to consider with heavier load weights, especially if the caster needs to pass over cracks, door thresholds, or other obstructions.
Shown below are some common configurations:
Heavy Duty Single Wheel Industrial Casters

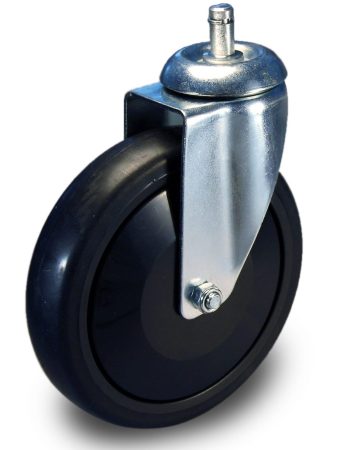

without brake
click to view larger image

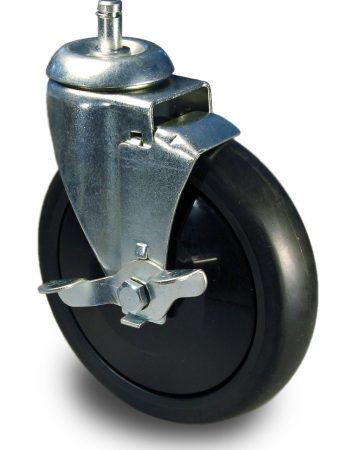

with brake
click to view larger image
Custom sizes and styles are available upon request.Various bearing types are available, including single bearing, double bearing, PA bushing, steel bearing.Casters are available with or without wheel thread guard.
| Product | Wheel | Brake | |
|---|---|---|---|
| Diameter (A) | Material | Type | |
| 75mm Industrial Caster, Hard rubber wheels | 75mm | Hard Rubber | Side tread brake |
| 75mm Industrial Caster, Hard rubber wheels, with Brake | 75mm | Hard Rubber | |
| 75mm Industrial Caster, Soft rubber wheels | 75mm | Soft Rubber | |
| 75mm Industrial Caster, Soft rubber wheels, with Brake | 75mm | Soft Rubber | Top locking brake |
| 75mm Industrial Caster, Nylon wheels | 75mm | Nylon (PA6) | |
| 75mm Industrial Caster, Nylon wheels, with Brake | 75mm | Nylon (PA6) | |
| 75mm Industrial Caster, Polypropylene wheels | 75mm | Polypropylene (PP) | |
| 75mm Industrial Caster, Polypropylene wheels, with Brake | 75mm | Polypropylene (PP) | Total lock brake |
| 75mm Industrial Caster, TPR tread wheels | 75mm | TPR Tread | |
| 75mm Industrial Caster, TPR tread wheels, with Brake | 75mm | TPR Tread | |
| 75mm Industrial Caster, TPU tread wheels | 75mm | TPU Tread | |
| 75mm Industrial Caster, TPU tread wheels, with Brake | 75mm | TPU Tread | |
| 100mm Industrial Caster, Hard rubber wheels | 100mm | Hard Rubber | |
| 100mm Industrial Caster, Hard rubber wheels, with Brake | 100mm | Hard Rubber | |
| 100mm Industrial Caster, Soft rubber wheels | 100mm | Soft Rubber | |
| 100mm Industrial Caster, Soft rubber wheels, with Brake | 100mm | Soft Rubber | |
| 100mm Industrial Caster, Nylon wheels | 100mm | Nylon (PA6) | |
| 100mm Industrial Caster, Nylon wheels, with Brake | 100mm | Nylon (PA6) | |
| 100mm Industrial Caster, Polypropylene wheels | 100mm | Polypropylene (PP) | |
| 100mm Industrial Caster, Polypropylene wheels, with Brake | 100mm | Polypropylene (PP) | |
| 100mm Industrial Caster, TPR tread wheels | 100mm | TPR Tread | |
| 100mm Industrial Caster, TPR tread wheels, with Brake | 100mm | TPR Tread | |
| 100mm Industrial Caster, TPU tread wheels | 100mm | TPU Tread | |
| 100mm Industrial Caster, TPU tread wheels, with Brake | 100mm | TPU Tread | |
| 125mm Industrial Caster, Hard rubber wheels | 125mm | Hard Rubber | |
| 125mm Industrial Caster, Hard rubber wheels, with Brake | 125mm | Hard Rubber | |
| 125mm Industrial Caster, Soft rubber wheels | 125mm | Soft Rubber | |
| 125mm Industrial Caster, Soft rubber wheels, with Brake | 125mm | Soft Rubber | |
| 125mm Industrial Caster, Nylon wheels | 125mm | Nylon (PA6) | |
| 125mm Industrial Caster, Nylon wheels, with Brake | 125mm | Nylon (PA6) | |
| 125mm Industrial Caster, Polypropylene wheels | 125mm | Polypropylene (PP) | |
| 125mm Industrial Caster, Polypropylene wheels, with Brake | 125mm | Polypropylene (PP) | |
| 125mm Industrial Caster, TPR tread wheels | 125mm | TPR Tread | |
| 125mm Industrial Caster, TPR tread wheels, with Brake | 125mm | TPR Tread | |
| 125mm Industrial Caster, TPU tread wheels | 125mm | TPU Tread | |
| 125mm Industrial Caster, TPU tread wheels, with Brake | 125mm | TPU Tread | |
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
