Carpin is the leading source for US-made and foreign-made marquis school glides found in classroom desks and chairs.
As the only US-based manufacturer of these products, Carpin provides unparalleled product expertise and know-how while offering the widest selection of glide bases, ferrules, and threaded stems to serve virtually any application.
Carpin marquis school glides provide a classic look to school desks and chairs, and are available with various top fittings to accommodate all furniture styles and designs. All marquis school glides are manufactured from superior grade steel with a nickel or zinc plated finish, equipped with angled spring clips made of tempered steel that install easily then bite into the ID of the tube to resist unwanted glide removal.
These products are available without a ferrule to provide a clean minimalist look, or with a ferrule to decoratively conceal the cut edge and provide added lateral stability.
Carpin also offers small marquis school glides that are attractively designed for narrow diameter tubing, typically 7/8” diameter or less.
Shown below are some common configurations:

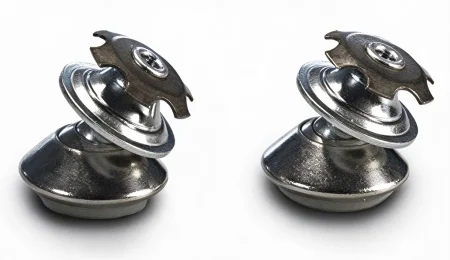

Series 035 Marquis School Glides

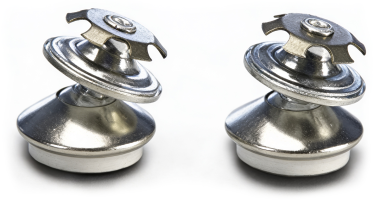

Marquis School Glides without Ferrule
| Product | Fits tubing | Base | |
|---|---|---|---|
| tube OD (A) | tube wall thickness | color / material | |
| Marquis School Glides without Ferrule for 5/8” OD tubing | 5/8” | 13 ga | Solo Glide® Base |
| Marquis School Glides without Ferrule for 5/8” OD tubing | 5/8” | 16-18 ga | |
| Marquis School Glides without Ferrule for 3/4” OD tubing | 3/4” | 16-18 ga | Zinc Plated Hardened Steel Base |
| Marquis School Glides without Ferrule for 7/8” OD tubing | 7/8” | 14 ga | Natural Nylon |
| Marquis School Glides without Ferrule for 7/8” OD tubing | 7/8” | 16-18 ga | |
| Marquis School Glides without Ferrule for 1” OD tubing | 1” | 13-14 ga | Black Nylon |
| Marquis School Glides without Ferrule for 1” OD tubing | 1” | 16-18 ga | |
| Marquis School Glides without Ferrule for 1-1/8” OD tubing | 1-1/8” | 16-18 ga | |
| Marquis School Glides without Ferrule for 1-1/4” OD tubing | 1-1/4” | 16-18 ga | Grey Non-skid |
| Marquis School Glides without Ferrule for 1” Square OD tubing | 1” SQ | 16-18 ga | |
| Marquis School Glides without Ferrule for 7/8” Square OD tubing | 7/8” SQ | 16-18 ga | |
Series 035 Marquis School Glides

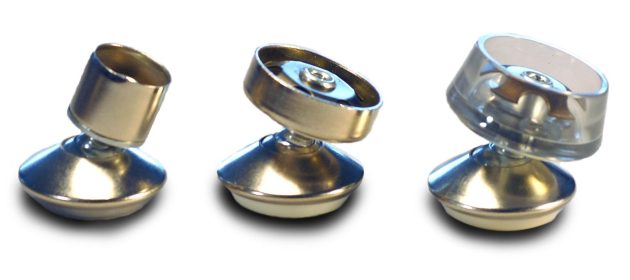

Marquis School Glides with Ferrule
click to view larger image
| Product | Fits Tubing | Ferrule | Base | |
|---|---|---|---|---|
| Tubing OD (A) | Tubing Wall Thickness | Material | Color / Material | |
| Marquis School Glides with Ferrule for 5/8" OD tubing | 5/8" | 13 ga | Solo Glide® Base | |
| Marquis School Glides with Ferrule for 5/8" OD tubing | 5/8" | 16-18 ga | ||
| Marquis School Glides with Outside Holding Ferrule for 5/8" OD tubing | 5/8" | ---- | Zinc Plated Hardened Steel Base | |
| Marquis School Glides with Ferrule for 11/16" OD tubing | 11/16" | 16-18 ga | ||
| Marquis School Glides with Ferrule for 3/4" OD tubing | 3/4" | 16-18 ga | Natural Nylon | |
| Marquis School Glides with Ferrule for 7/8" OD tubing | 7/8" | 14 ga | ||
| Marquis School Glides with Plastic Ferrule for 7/8" OD tubing | 7/8" | 16-18 ga | Black PVC | Black Nylon |
| Marquis School Glides with Ferrule for 7/8" OD tubing | 7/8" | 16-18 ga | ||
| Marquis School Glides with Ferrule for 1" OD tubing | 1" | 13-14 ga | Grey Non-skid | |
| Marquis School Glides with Ferrule for 1" OD tubing | 1" | 16-18 ga | ||
| Marquis School Glides with Plastic Ferrule for 1" OD tubing | 1" | 16-18 ga | Black PVC | |
| Marquis School Glides with Ferrule for 1-1/8" OD tubing | 1-1/8" | 16-18 ga | ||
| Marquis School Glides with Plastic Ferrule for 1-1/8" OD tubing | 1-1/8" | 16-18 ga | Black PVC | |
| Marquis School Glides with Ferrule for 1-1/4" OD tubing | 1-1/4" | 16-18 ga | ||
Series 035 Marquis School Glides
Marquis School Glides with Bumper Ferrule
Bumper ferrule provides protection to the end of the chair leg from when the chair makes contact with the table base or a wall. And the bumper on the glide allows scratch free stacking of chairs- the glides if the stacked chair will not damage the paint or plating on the legs of the bottom chair.
Series 035 Marquis School Glides
Marquis School Glides with Tube Insert
Rather than use steel components to insert into the tube, plastic tube inserts can be used and provide deeper glide-to-tube engagement, can be matched to the colors of the tubing, and can provide a sleek seamless extension of the tube.
Series 035 Marquis School Glides
Small Footprint Marquis School Glide
click to view larger image
For a smaller footprint and more minimalistic appearance that better matches the size of the tube.
| Product | Fits Tubing | Base | |
|---|---|---|---|
| Tubing OD (A) | Tubing Wall Thickness | Color / Material | |
| Small Footprint Marquis School Glides without Ferrule for 5/8" OD tubing | 5/8" | 13 ga | Solo Glide® Base |
| Small Footprint Marquis School Glides without Ferrule for 5/8" OD tubing | 5/8" | 16-18 ga | |
| Small Footprint Marquis School Glides without Ferrule for 3/4" OD tubing | 3/4" | 16-18 ga | Natural Nylon |
| Small Footprint Marquis School Glides without Ferrule for 7/8" OD tubing | 7/8" | 14 ga | |
| Small Footprint Marquis School Glides without Ferrule for 7/8" OD tubing | 7/8" | 16-18 ga | |
Series 035

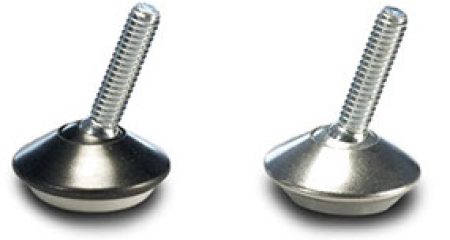

Marquis Adjustable School Glides
click to view larger image
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
