Carpin offers light duty tube connectors that convert the end of tubing into a receptacle that accepts 1/4-20 and 10-20 threaded stems designed to fit 5/8″ to 1″ OD tubing, with metric sizes available upon request.
Our light duty tube connectors are mainly used to secure tubing members to other pieces of tubing or to plates and walls. These versatile products are commonly utilized in ductwork supports, rack units, RV ladders, and as cross member attachments.
Carpin’s versatile tube connectors feature an angled spring clip constructed from high quality forged carbon steel for maximum retention. The angled spring clips allow for easy insert then bites into the ID of the tube to provide extra strong holding power. These spring clips can also be treated with a special rust preventative coating.
Shown below are some common configurations:

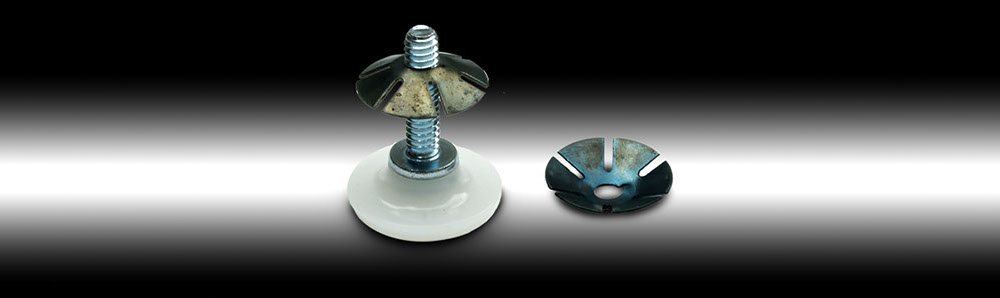

Light Duty Tube Connectors
click to view larger image
Custom sizes and styles are available upon request.
Special rust preventative coatings are available upon request.
| Product | fits tubing | thread (B) | |
|---|---|---|---|
| tubing OD (A) | tubing wall thickness | ||
| Light Duty Tube Connector for 5/8" tube, 10-24 thread | 5/8" | 19 ga | 10-24 |
| Light Duty Tube Connector for 3/4" tube, 10-24 thread | 3/4" | 16-18 ga | 10-24 |
| Light Duty Tube Connector for 3/4" tube, 1/4-20 thread | 3/4" | 16-18 ga | 1/4-20 |
| Light Duty Tube Connector for 3/4" tube, 10-24 thread | 3/4" | 20-22 ga | 10-24 |
| Light Duty Tube Connector for 3/4" tube, 1/4-20 thread | 3/4" | 20-22 ga | 1/4-20 |
| Light Duty Tube Connector for 7/8" tube, 10-24 thread | 7/8" | 16-18 ga | 10-24 |
| Light Duty Tube Connector for 7/8" tube, 1/4-20 thread | 7/8" | 16-18 ga | 1/4-20 |
| Light Duty Tube Connector for 13/16" tube, 1/4-20 thread | 13/16" | 16-18 ga | 1/4-20 |
| Light Duty Tube Connector for 1" tube, 10-24 thread | 1" | 13 ga | 10-24 |
| Light Duty Tube Connector for 1" tube, 1/4-20 thread | 1" | 13 ga | 1/4-20 |
| Light Duty Tube Connector for 1" tube, 10-24 thread | 1" | 16-18 ga | 10-24 |
| Light Duty Tube Connector for 1" tube, 1/4-20 thread | 1" | 16-18 ga | 1/4-20 |
| Light Duty Tube Connector for 1" tube, 10-24 thread | 1" | 20-22 ga | 10-24 |
| Light Duty Tube Connector for 1" tube, 1/4-20 thread | 1" | 20-22 ga | 1/4-20 |
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
