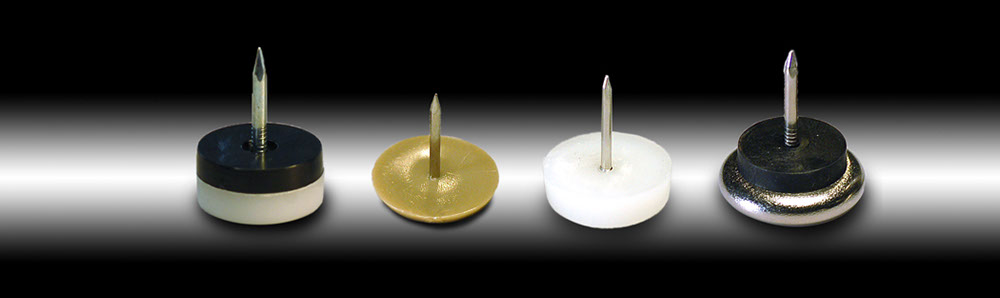

Plastic and metal nail-on glides from Carpin install easily into the base of wood furniture to protect flooring surfaces from the rough wood edges of wooden chairs and table legs.
Available in base diameters ranging from 5/8″ up to 1-1/8″, Carpin nail-on glides are made of a high grade polyethylene or nylon base with a steel nail overmolded.
The polyethylene or nylon base provides a soft, cushioned feel for chairs and tables, and is especially beneficial for protecting uneven flooring surfaces such as ceramic tile or concrete.
Shown below are some common configurations:
Plastic Nail-On Glides with Cushion Series 051
click to view larger image
These nail-on glides are made of high grade polyethylene or nylon bases, a steel nail overmolded into the plastic. The polyethylene cushion creates a decorative appearance and provides an element of cushion, a softer feel when chairs and tables are being moved, especially on uneven surfaces such as ceramic time or concrete flooring.
Custom sizes, styles and colors are available upon request
| Product | Base diameter (A) |
|---|---|
| 5/8" OD Plastic Nail-On Glides with Cushion | 5/8" |
| 3/4" OD Plastic Nail-On Glides with Cushion | 3/4" |
| 7/8" OD Plastic Nail-On Glides with Cushion | 7/8" |
| 1" OD Plastic Nail-On Glides with Cushion | 1" |
| 1-1/8" OD Plastic Nail-On Glides with Cushion | 1-1/8" |
Plastic Nail-On Glides Series 052
click to view larger image
click to view larger image
These simple economic nail-on glides are made of high grade polyethylene or nylon bases with a steel nail overmolded into the plastic.
Custom sizes, styles and colors are available upon request.
| Product | Base diameter (A) | Base shape |
|---|---|---|
| 5/8" OD Plastic Nail-On Glides | 5/8" | flat bottom |
| 5/8" OD Plastic Nail-On Glides | 5/8" | domed bottom |
| 3/4" OD Plastic Nail-On Glides | 3/4" | flat bottom |
| 3/4" OD Plastic Nail-On Glides | 3/4" | domed bottom |
| 7/8" OD Plastic Nail-On Glides | 7/8" | flat bottom |
| 7/8" OD Plastic Nail-On Glides | 7/8" | domed bottom |
| 1" OD Plastic Nail-On Glides | 1" | flat bottom |
| 1-1/8" OD Plastic Nail-On Glides | 1-1/8" | flat bottom |
| 5/8" x 2" OD Oval Plastic Nail-On Glides | 5/8" x 2" | flat bottom |
| 1/2" x 1-1/4" OD Rectangular Plastic Nail-On Glides | 1/2" x 1-1/4" | flat bottom |
| 3/4" x 1-1/4" OD Rectangular Plastic Nail-On Glides | 3/4" x 1-1/4" | flat bottom |
Metal Nail-On Glides with Cushion Series 050
click to view larger image
These metal nail-on glides have bases of nickel plated steel and the steel nail is overmolded into the polyethylene plastic which fills the metal base. The polyethylene cushion creates a decorative appearance and provides an element of cushion, a softer feel when chairs and tables are being moved, especially on uneven surfaces such as ceramic time or concrete flooring. The large radius on the steel base allows for easy sliding on carpet.
Custom sizes, styles and colors are available upon request.
| Product | Base diameter (A) |
|---|---|
| 3/4" OD Metal Nail-On Glides | 3/4" |
| 7/8" OD Metal Nail-On Glides | 7/8" |
| 1-1/16" OD Metal Nail-On Glides | 1-1/16" |
| 1-1/8" OD Metal Nail-On Glides | 1-1/8" |
| 1-1/4" OD Metal Nail-On Glides | 1-1/4" |
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
