Carpin offers various plastic threaded inserts that convert the end of a metal tube into a receptacle capable of accepting threaded stems or rods in standard sizes ranging from 1/4-20 up to 3/8-16.
Our plastic threaded inserts are manufactured with a high quality plastic base along with a nut/receptacle that is made of either plastic or metal.
In addition to standard plastic threaded inserts, Carpin also designs and manufactures custom designed products. Shown below is a just small sampling of our custom design, manufacturing, and assembly capabilities to produce all sorts of plastic threaded inserts.

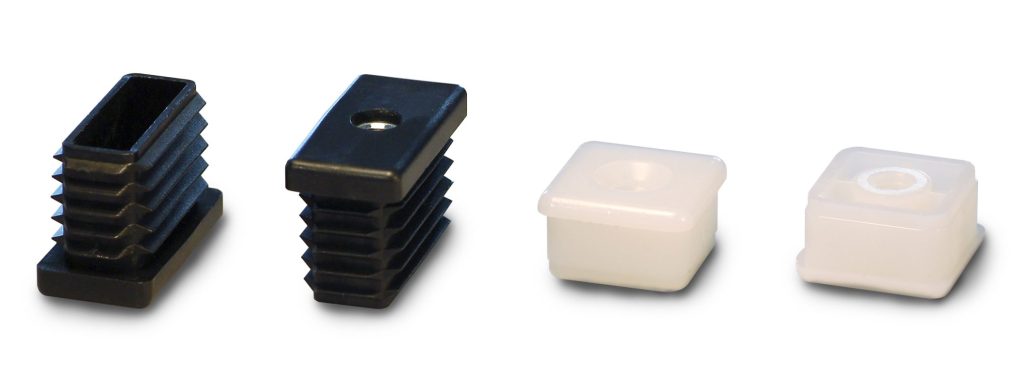

Shown below are some common configurations:
Plastic Threaded Inserts
click to view larger image
| Product | tube (A) | thread (B) | thread material | tube wall thickness |
|---|---|---|---|---|
| Plastic threaded insert for 1" square tubing, 1/4-20 | 1" | 1/4-20 | steel nut | 16 ga |
| Plastic threaded insert for 1" square tubing, 1/4-20 | 1" | 1/4-20 | steel nut | 18 ga |
| Plastic threaded insert for 1" square tubing, 5/16-18 | 1" | 5/16-18 | steel nut | 16 ga |
| Plastic threaded insert for 1" square tubing, 5/16-18 | 1" | 5/16-18 | tapped nylon | 18 ga |
| Plastic threaded insert for 1" round tubing, 1/4-20 | 1" | 1/4-20 | steel nut | 16 ga |
| Plastic threaded insert for 1" round tubing, 5/16-18 | 1" | 5/16-18 | steel nut | 16 ga |
| Plastic threaded insert for 1" x 2" rectang. tubing, 5/16-18 | 1x2" | 5/16-18 | steel nut | 16 ga |
| Plastic threaded insert for 3/4" x 1-1/2" rectang. tubing, 5/16-18 | 3/4" x 1-1/2" | 5/16-18 | steel nut | 16-18 ga |
| Plastic threaded insert for 3/8" round hole, 1/4-20 | 3/8" ID hole | 1/4-20 | tapped nylon | |
| Plastic threaded insert for 7/16" round hole, 1/4-20 | 7/16" ID hole | 1/4-20 | tapped nylon | |
| Plastic threaded insert for 7/8" round tubing, 3/8-16 | 7/8" | 3/8-16 | tapped nylon | 16 ga |
| Plastic threaded insert for 3/4" round tubing, 1/4-20 | 3/4" | 1/4-20 | tapped nylon | 16 ga |
| Other sizes are available upon request | ||||

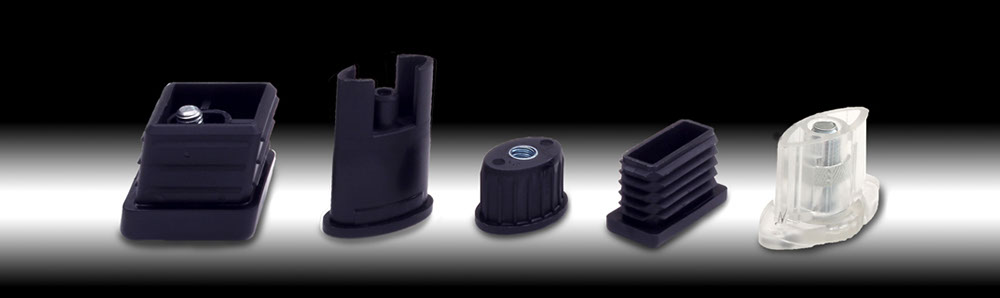

Special Custom Plastic Threaded Inserts
Elliptical Threaded Insert with Nut
Angled Threaded Insert with Nut and Glide Assembled
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
