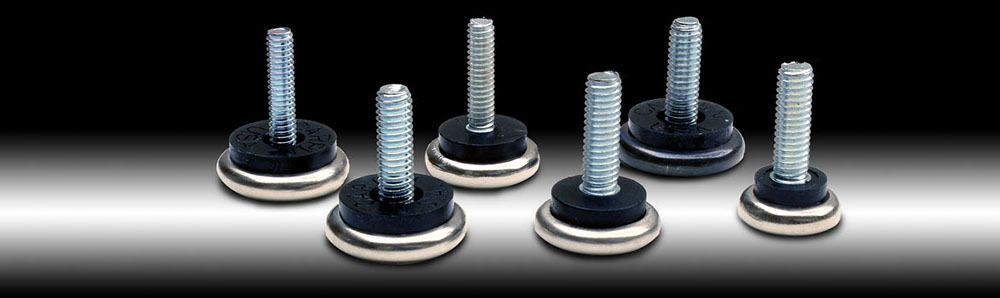

Adjustable Glides with Metal Base

Adjustable glides with metal base from Carpin provide an inexpensive leveling solution for many different applications, including desks, tables, shelving units, filing cabinets, racks, workbenches, non-movable chairs, and more.

Carpin adjustable glides with metal base levels and balances while delivering a cushioning effect that reduces noise and vibration, while allowing furniture to glide more easily on both carpeted and non-carpeted surfaces.

The threaded stems insert into various receptacles, including T-nuts, threaded adapters, and tapped holes on table bases. The exposed portion of the glide can be easily adjusted by rotating the threaded stem clockwise or counter-clockwise, enabling a table or desk to be easily adjusted to sit flat and balanced on uneven flooring surfaces.

These adjustable glides are made from high-quality black polyethylene (PE) which is injected molded into a metal shell that firmly holds the threaded stem in place to prevent it from spinning. The PE plastic material engulfs the threaded stem and its flexibility serves to dampen vibration. The steel base is made from carbon steel and provides a smooth surface so furniture can slide easily across carpet while also reducing abrasion to rougher flooring surfaces such as concrete and ceramic tile. These glides are not recommended for use in wet environments or wet flooring.

With Series 054 adjustable glides, the metal shell is constructed using plated steel or stainless steel. While not providing the decorative look of nickel or black oxide, plated steel or stainless steel construction is more corrosion resistant and better suited for damp environments.

Shown below are some common configurations:

Series 053

Adjustable Glides with Metal Base: 7/8″ dia. base
10 SERIES O53 AGMETAL BASE-NEW

click to view larger image

Metal Base Table
Product Threaded Stem Base
Thread Size (T) Thread Length (L) Stem Finish Base Diameter (A) Base Finish
Adjustable Glides with 7/8" Metal Base, 1/4-20 x 1/2" stem 1/4-20 1/2" 7/8"
Adjustable Glides with 7/8" Metal Base, 1/4-20 x 3/4" stem 1/4-20 3/4" Zinc 7/8" Zinc
Adjustable Glides with 7/8" Metal Base, 1/4-20 x 1" stem 1/4-20 1" or 7/8" or
Adjustable Glides with 7/8" Metal Base, 1/4-20 x 1-1/2" stem 1/4-20 1-1/2" Black 7/8" Black
Adjustable Glides with 7/8" Metal Base, 5/16-18 x 1" stem 5/16-18 1" Oxide 7/8" Oxide
Adjustable Glides with 7/8" Metal Base, 5/16-18 x 1-1/2" stem 5/16-18 1-1/2" 7/8"
Other sizes are available upon request

Series 054

Adjustable Glides with Metal Base: 1-1/16″ dia. base

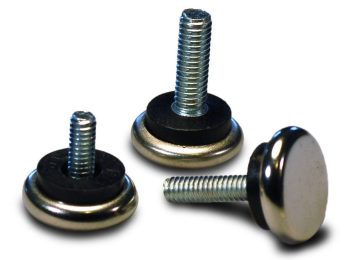

11 Series 054 AGMetal Base-New

click to view larger image

Metal Base 1-1/16 Table
Product Threaded Stem Base
Thread Size (T) Thread Length (L) Stem Finish Base Diameter (A) Base Finish
Adjustable Glides with 1-1/16" Metal Base, 1/4-20 x 1/2" stem 1/4-20 1/2" 1-1/16" Zinc
Adjustable Glides with 1-1/16" Metal Base, 1/4-20 x 3/4" stem 1/4-20 3/4" Zinc 1-1/16" or
Adjustable Glides with 1-1/16" Metal Base, 1/4-20 x 1" stem 1/4-20 1" or 1-1/16" Black Oxide
Adjustable Glides with 1-1/16" Metal Base, 1/4-20 x 1-1/2" stem 1/4-20 1-1/2" Black 1-1/16" or
Adjustable Glides with 1-1/16" Metal Base, 5/16-18 x 1" stem 5/16-18 1" Oxide 1-1/16" Stainless Steel
Adjustable Glides with 1-1/16" Metal Base, 5/16-18 x 1-1/2" stem 5/16-18 1-1/2" 1-1/16"
Other sizes are available upon request

Series 055

Adjustable Glides with Metal Base: 1-1/4″ dia. base
12 Series 055 AG Metal Base-New

click to view larger image

Metal Base 1-1/4 Table
Product Threaded Stem Base
Thread Size (T) Thread Length (L) Stem Finish Base Diameter (A) Base Finish
Adjustable Glides with 1-1/4" Metal Base, 1/4-20 x 1/2" stem 1/4-20 1/2" 1-1/4"
Adjustable Glides with 1-1/4" Metal Base, 1/4-20 x 1" stem 1/4-20 1" Zinc 1-1/4" Zinc
Adjustable Glides with 1-1/4" Metal Base, 1/4-20 x 1-1/2" stem 1/4-20 1-1/2" or 1-1/4" or
Adjustable Glides with 1-1/4" Metal Base, 5/16-18 x 1/2" stem 5/16-18 1/2" Black 1-1/4" Black
Adjustable Glides with 1-1/4" Metal Base, 5/16-18 x 1" stem 5/16-18 1" Oxide 1-1/4" Oxide
Adjustable Glides with 1-1/4" Metal Base, 3/8-16 x 1/2" stem 3/8-16 1/2" 1-1/4"
Adjustable Glides with 1-1/4" Metal Base, 3/8-16 x 1" stem 3/8-16 1" 1-1/4"
Adjustable Glides with 1-1/4" Metal Base, 3/8-16 x 1-1/2" stem 3/8-16 1-1/2" 1-1/4"
Other sizes are available upon request

In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. For more information on adjustable glides with metal base, please contact us or complete our application questionnaire today.

×
