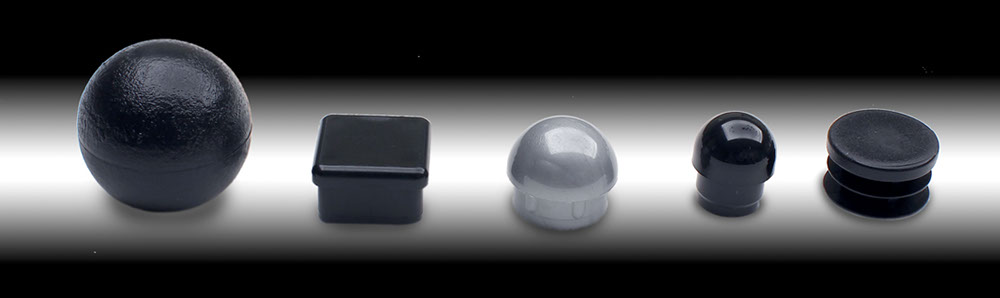

Carpin offers four standard varieties of a plastic cap: flat head plastic caps, full radius plastic caps; ball glide plastic caps; and multi-gage finned plastic caps.
Flat head plastic caps are made of polyethylene and economically designed to close off the tube with sufficient force of an interference fit between the ID of the tube and the OD of the plastic cap.
Full radius plastic caps are made of durable nylon and have decorative rounded shape that can be used as a glide on legs that are not perpendicular to the floor.
Ball glide plastic caps offer a more rugged and tighter fit and are made of durable nylon and also have a decorative rounded shape that hides the cut edge of the tube while also being used as a glide on legs that are not perpendicular to the floor.
Multi-gage finned plastic caps are made of economical polyethylene, and because of their finned design, theses multi-gage closures offer greater versatility to fit a wider range of tubing wall thicknesses.
Shown below are some common configurations:
Flat Head Plastic Caps
click to view larger image
Flat Head plastic caps economically and simply close off the tube. The caps insert into the tube with force because there is an interference fit between the ID of the tube and the OD of the body of the plastic cap. Flat head plastic caps are made of economical polyethylene.
Custom sizes, styles and colors are available upon request.
| Product | fits tubing | material / color | |
|---|---|---|---|
| tubing OD (A) | tubing wall thickness | ||
| Flat Head Plastic Caps for Round 3/4" OD tubing | 3/4" | 18 ga | HDPE |
| Flat Head Plastic Caps for Round 7/8" OD tubing | 7/8" | 18 ga | |
| Flat Head Plastic Caps for Square 13/16" OD tubing | 13/16" | 18 ga | |
| Flat Head Plastic Caps for Round 1" OD tubing | 1" | 18 ga | black |
| Flat Head Plastic Caps for Square 1" OD tubing | 1" | 18 ga | natural |
| Flat Head Plastic Caps for Round 1-1/2" OD tubing | 1-1/2" | 18 ga | white |
| Flat Head Plastic Caps for Square 1-1/2" OD tubing | 1-1/2" | 16 ga | |
Full Radius Plastic Caps
click to view larger image
Full radius plastic caps economically and simply close off the tube. The caps insert into the tube with force because there is an interference fit between the ID of the tube and the OD of the body of the plastic cap. Full radius plastic caps are made of durable nylon with a decorative rounded shape that can be used as a glide on legs that are not perpendicular to the floor.
Custom sizes, styles, and colors are available upon request.
| Product | fits tubing | material / color | |
|---|---|---|---|
| tubing OD (A) | tubing wall thickness | ||
| Full Radius Plastic Caps for Round 3/4" OD tubing | 3/4" | 14 ga | nylon |
| Full Radius Plastic Caps for Round 7/8" OD tubing | 7/8" | 18 ga | black |
| Full Radius Plastic Caps for Round 1" OD tubing | 1" | 16 ga | natural |
| Full Radius Plastic Caps for Round 1" OD tubing | 1" | 18 ga | |
| Full Radius Plastic Caps for Round 1-1/2" OD tubing | 1-1/2" | 14 ga | white |
Ball Glide Plastic Caps
click to view larger image
Ball glide plastic caps economically and simply close off the tube. The caps insert into the tube with force because there is an interference fit between the ID of the tube and the OD of the body of the plastic cap. Plastic ball caps are made of durable nylon and have a decorative rounded shape that hides the cut edge of the tube and can be used as a glide on legs that are not perpendicular to the floor. Ball glide plastic caps feature a more rugged and tighter fit to the ID of the tube that better resists dislodging.
Custom sizes, styles and colors are available upon request.
| Product | fits tubing | material / color | |
|---|---|---|---|
| tubing OD (A) | tubing wall thickness | ||
| Ball Glide Plastic Caps for Round 3/4" OD tubing | 3/4" | 14 ga | nylon |
| Ball Glide Plastic Caps for Round 7/8" OD tubing | 7/8" | 18 ga | black |
| Ball Glide Plastic Caps for Round 1" OD tubing | 1" | 16 ga | natural |
| Ball Glide Plastic Caps for Round 1" OD tubing | 1" | 18 ga | white |
| Ball Glide Plastic Caps for Round 1-1/2" OD tubing | 1-1/2" | 14 ga | |
Multi-gage Finned Plastic Caps
click to view larger image
Multi-gage finned plastic caps economically and simply close off the tube. The caps insert into the tube with force because there is an interference fit between the ID of the tube and the OD of the fins of the plastic cap. These caps are made of economical polyethylene. Because of the finned design, the multi-gage closure is more versatile and can fit a range of tubing wall thicknesses.
Custom sizes, styles and colors are available upon request.
| Product | fits tubing | material / color | |
|---|---|---|---|
| tubing OD (A) | tubing wall thickness | ||
| Multi-gage Finned Plastic Caps for Square 3/4" OD tubing | 3/4" | 14-18 ga | HDPE |
| Multi-gage Finned Plastic Caps for Round 1" OD tubing | 1" | 14-18 ga | |
| Multi-gage Finned Plastic Caps for Round 1-1/8" OD tubing | 1-1/8" | 14-18 ga | black |
| Multi-gage Finned Plastic Caps for Round 1-1/4" OD tubing | 1-1/4" | 14-18 ga | natural |
| Multi-gage Finned Plastic Caps for Square 1-1/2" OD tubing | 1-1/2" | 16-18 ga | white |
| Multi-gage Finned Plastic Caps for Square 2" OD tubing | 2" | 16-18 ga | |
In addition to the standard configurations shown above, Carpin can customize a solution to meet your specific application requirements. Please contact us today to learn more.
